The Abdominal XRay: A relic or a reliable tool?

/

The KUB is easy to obtain and commonly used in the Emergency Department despite the advent and ease of higher specificity radiological studies. As these studies are still readily used and in some settings may be the only imaging available, our goals for this post will be to discuss indications for abdominal radiography in the emergency department as well as give examples of normal anatomy, an approach to interpretation, and underlying pathology that can be discovered, including associated sensitivities and specificities. We will not discuss utilization of contrast. Furthermore, we will briefly touch on different abdominal views that can be obtained and their utility but will focus primarily on the KUB since it is the most utilized image obtained in the emergency department.

Overview

ACR Indications for KUB

  1. Evaluation and follow-up of abdominal distention, bowel obstruction, or nonobstructive ileus
  2. Constipation, especially assessment of fecal load in children
  3. Evaluation for necrotizing enterocolitis, particularly in the premature newborn
  4. Evaluation of congenital gastrointestinal abnormalities
  5. Follow-up of the postoperative patient, including detection of inadvertent retained surgical foreign bodies
  6. Evaluation and follow-up of urinary tract calculi, including assessment of lithotripsy patients
  7. Evaluation of ingested or other introduced foreign bodies
  8. A scout radiograph prior to a planned imaging examination, ie, fluoroscopy
  9. Evaluation of the placement of medical devices
  10. Evaluation for pneumoperitoneum
  11. Evaluation of possible toxic megacolon
  12. Evaluation of unstable patients after blunt trauma to the abdomen
  13. Evaluation of a palpable mass in an infant or child
  14. Localization of pancreatic duct stone pre-lithotripsy and endoscopic stone removal
  15. Evaluation for suspected retained video endoscopy capsule and determination of location of patency capsule
  16. Evaluation of colon transit time using the simplified radiodense marker colon transit test

There has been constant debate surrounding the indications and utility of abdominal plain imaging. The American College of Radiology have listed the 16 indications for abdominal radiography (table at right). Realistically the abdominal radiograph (AXR) should be ordered when there will likely be a finding for a suspected disease process and the imaging will change management. Rothrock, Green, and Hummel found the presence of prior abdominal surgery, foreign body ingestion, abnormal bowel sounds, abdominal distention, or peritoneal signs was 93% sensitive in detecting diagnostic radiographs in children presenting with major diseases.

Plain abdominal radiography is frequently over-ordered in the emergency setting and are often the only imaging study obtained (Greene Indications for plain AXR). This increases healthcare cost and unnecessary radiation to the patient. The radiation exposure for an AXR 1.2-1.5 mSv exposure per abdominal film which can equate to 75 chest x-rays. This is not negligible when increased cancer risk may occur between 10 and 100 mSv. The most common view of the abdominal radiograph is the anteroposterior projection in the supine position. The practitioner should start with a KUB and possibly an upright chest x-ray and obtain additional radiographs as indicated.



Technique

(Case courtesy of Dr Aneta Kecler-Pietrzyk, Radiopaedia.org, rID: 53076)

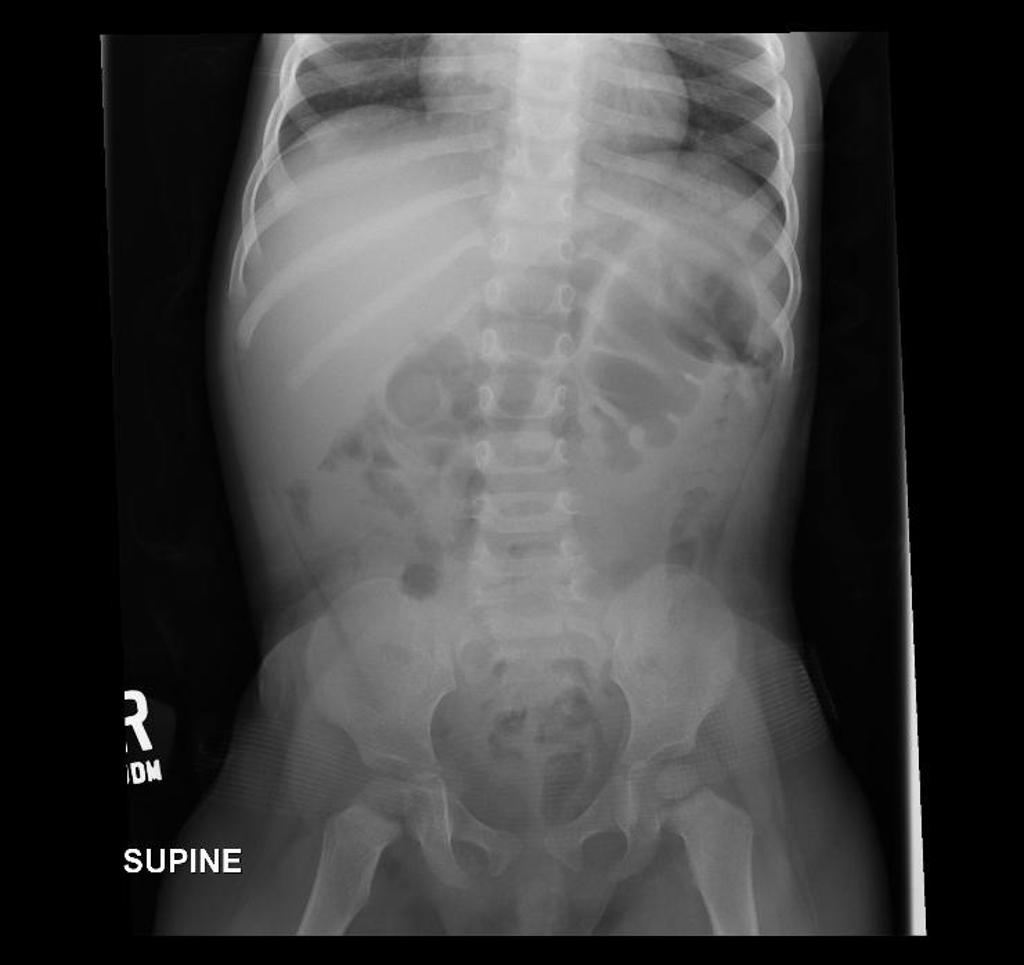

Supine

Patient supine on table with the whole diaphragm visualized superiorly and the inferior pubic rami visualized inferiorly. The lateral abdominal wall musculature and soft tissue should be visualized.

Case courtesy of Dr Aneta Kecler-Pietrzyk, Radiopaedia.org, rID: 53076

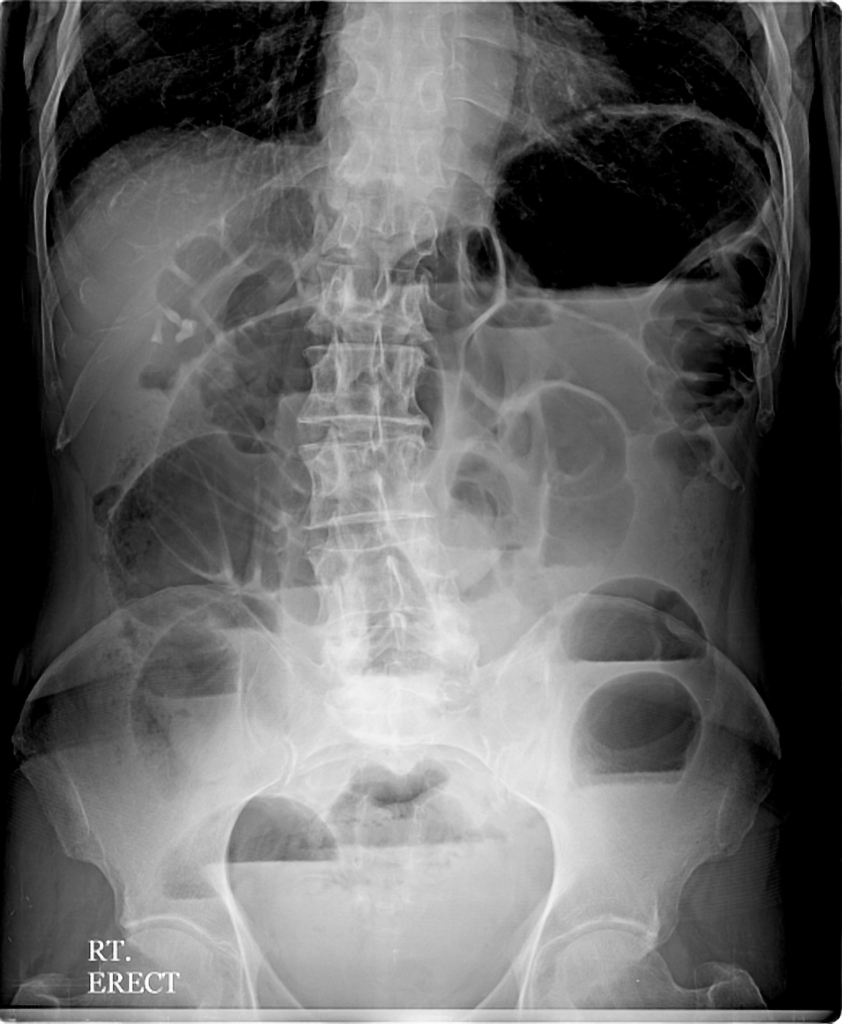

Upright

Upright

This is performed with the patient standing upright. Here visualization of air-fluid levels are more easily identified. This view is indicated when an obstruction or large gas-producing abscess is suspected. The upright x-ray is not ideal for detecting a small pneumoperitoneum.

Case courtesy of Dr Ahmed Abdrabou, Radiopaedia.org, rID: 35721

5. Decubitus view string of beads.jpg

Lateral



Decubitus

This view is obtained in the left lateral decubitus positon (the right lateral decubitus is rarely helpful). This is more sensitive for identification of small pneumoperitoneum or obstruction, especially when the patient is too ill to stand.  Lastly it may better reveal any intussusception given the better image of the right lower quadrant.

Case courtesy of Dr Maulik S Patel, Radiopaedia.org, rID: 13853

Other Views: Only indicated if pathology found on initial imaging and when other imaging modalities are not indicated or not available.

  1. Erect Chest Film- Evaluates for free air or underlying chest pathology. Please refer to Dr. Alexa Sabedra’s post on Interpreting Chest X-rays.
  2. Prone view for suspected anorectal malformations, intussusception, or intraabdominal abscess.
  3. Cross-table supine to evaluate for foreign object in penetrating trauma. May have increased sensitivity in neonates for detecting free air (ACR)
  4. Collimated low kilovoltage to evaluate for a specific area of interest for free air, stones, or abscess.
  5. Oblique view may reveal calcifications that were obscured by the spine.

Approach

In order to accurately interpret the AXR the practitioner must follow a repeatable step-by-step approach every time. This ensures that small findings are not missed especially in the presence of huge abnormalities. We will discuss the easy to remember: “Gasses, masses, bones, stones, leads, and lines”

  • Gasses- Evaluate the bilateral lungs bases, the bowel gas pattern, evaluate for any sings of air outside of the bowel including pathologic air in the solid organs or subcutaneous tissue.
  • Masses- Review the solid intra-abdominal organs looking for any abnormalities in size, outlines, blurring, or mass effect.
  • Bones- Evaluate the visualized skeleton for an evidence of fracture, malalignment, or abnormal lesions.
  • Stones- Look for any calcifications or ingested radiopaque objects
  • Leads and Lines- Evaluate for any tubes, lines, or drains for appropriate placement.

Pathology

Malrotation with volvulus

Double bubble sign demonstrating malrotation. Case courtesy of Dr Jeremy Jones, Radiopaedia.org, rID: 24277

Conventional radiography is not sensitive nor specific for malrotation. Findings on AXR may include air-fluid levels consistent with obstruction, dilated loops overlying the liver, or potentially a double bubble sign. Furthermore, AXR may show right-sided jejunal marking with absence of stool filled colon in the right lower quadrant. Interestingly, normal gas pattern is the most common finding in malrotation.  Ultimately plain radiography should not be used to exclude malrotation and volvulus.

  • Study of choice - upper GI series

Necrotizing Enterocolitis

AXR is the imaging modality of choice. When NEC is suspected obtain AP and lateral decubitus abdominal radiographs. Repeat imaging can be performed every 6 hours to evaluate for rapid evaluation. Findings are on a spectrum that change with disease severity. The table below is a standard 10-point scale that increases with disease severity and for every 1-point increase patient is more likely to have severe disease measured by need for surgical intervention. Both Bell’s criteria and modified Bell’s criteria follow a similar trend of ileus -> intestinal pneumatosis -> Portal venous gas -> ascites -> pneumoperitoneum. Pneumatosis intestinalis is highly specific for NEC and present in 75% of cases. Portal venous gas is present in 10-30% of cases.

Pneumoperitoneum in NEC is associated with several signs. These include Rigler’s sign, visualization of intraabdominal ligamentous structures, and football sign. Hover over the images below for the specific sign and severity of the NEC.

Moderate bowel distention suggestive of NEC. Case courtesy of Dr Hani Salam, Radiopaedia.org, rID: 8001

extensive pneumatosis in NEC. Case courtesy of Dr Hani Salam, Radiopaedia.org, rID: 9793

Portal venous Gas. Case courtesy of Dr Jeremy Jones, Radiopaedia.org, rID: 6130

Rigler’s sign in older patient with pneumoperitoneum. Note the ability to see both walls of the bowel.. Case courtesy of Dr Alexandra Stanislavsky, Radiopaedia.org, rID: 12645

Football sign. Case courtesy of Dr Michael Sargent, Radiopaedia.org, rID: 6018

Visualization of the falciform ligament in a patient with pneumoperitoneum. Case courtesy of Dr  Mohammad Taghi Niknejad, Radiopaedia.org, rID: 21213

Intussusception

For ileocolic intussusception, sensitivity of AXR is 74 to 90% and approaches 100% sensitivity if there is air present in the ascending colon in three separate views. However, up to 24% of children with intussusception may have normal radiographs. The practitioner should focus on the cecum and the entire large bowel. However, children occasionally have redundant sigmoid colon that may extend to the right lower quadrant and be mistaken for the cecum. Prolonged intussusception may lead to signs of bowel obstruction and perforation. Ultrasound is the imaging modality of choice but if radiography is attempted, two views should be utilized. Signs consistent with intussusception include Crescent Sign, Meniscus Sign, and Target sign (pictured below). Of note, this is the most common cause of SBO in children.

mid-abdominal sausage-like bowel. Case courtesy of A.Prof Frank Gaillard, Radiopaedia.org, rID: 6502

Meniscus sign with air visualized between bowel layers in the patient's Right Lower Quadrant. Case courtesy of Dr Hidayatullah Hamidi, Radiopaedia.org, rID: 57718

Soft tissue mass in the Right lower quadrant suggestive.Case courtesy of Dr Eric F Greif, Radiopaedia.org, rID: 29373

Appendicitis

Appendecolith. Case courtesy of A.Prof Frank Gaillard, Radiopaedia.org, rID: 5881

AXR is rarely useful and may reveal a appendicolith which is highly suggestive of appendicitis but only visualized in 5-10% of cases. Other findings include focal right lower quadrant ileus, loss of psoas shadow, or right lower quadrant soft tissue mass. Lastly the inflammation may irritate the ipsilateral psoas muscle leading to muscle spasm and scoliosis convex to the left side. None of these are definitive for appendicitis.

multiple air-fluid levels in the upright abdominal view. Dr Ahmed Abdrabou, Radiopaedia.org, rID: 35721

Bowel Obstruction

AXR is 30-70% sensitive and 50% specific for obstruction and can reveal dilated loops of bowel with air-fluid levels. Emergency Department providers had a sensitivity of 47% and a specificity of 72% when detecting SBO on supine AXR. When a upright or decubitus view those numbers rose to 69% and 73% respectively.

Constipation

fecal burden in the rectum and to the splenic flexure. By James Heilman, MD [CC BY 3.0]

AXR is often ordered for constipation and only have a sensitivity of 60-80%. Misdiagnosis in children with constipation is more frequent in patients where an AXR was obtained and patients with abdominal pain and tenderness. The most common missed diagnosis included perforated appendicitis, intussusception, and bowel obstruction. Review of literature revealed no correlation of clinical constipation and fecal load appreciated on AXR. AXR has little or no role in confirming or ruling out a diagnosis of constipation. Therefore despite a large stool burden on AXR clinicians should not discount serious/alternate causes of abdominal pain.

left sided nephrolithiasis. Case courtesy of A.Prof Frank Gaillard, Radiopaedia.org, rID: 12555

Renal Stones

AXR can detect up to 90% of renal calculi although stool may make this more diicult to view. Radiography has a sensitivity of 62 % and specificity of 67 % of detecting stones. They have no advantage over CT scan and should not be ordered instead of CT. Calcium stones are radiodense. Struvite somewhat radiodense and may show up. Uric acid and cysteine are radiolucent.

right upper quadrant densities consistent with cholelithiasis. Case courtesy of Dr Sajoscha Sorrentino, Radiopaedia.org, rID: 20092

Cholelithiasis

AXR can detect 15% of gallstones in adults. However, given the pathophysiology of gallstone formation in children (hemolytic disease, TPN, and cystic fibrosis) they may be seen 50% of children.

Tumors

 Wilms Tumor Case courtesy of A.Prof Frank Gaillard, Radiopaedia.org, rID: 5957

Any masses appreciated on physical examination should begin evaluation with ultrasound. However occasionally AXR is ordered and a mass may be noticed. Calcification is present in at least 30% of neuroblastomas and this may been seen on AXR.

loops of bowel in the left inguinal region. Inguinal Hernia Case courtesy of Dr Natalie Yang, Radiopaedia.org, rID: 6864

Inguinal hernia

May be missed on AXR if the image does not include the scrotum on imaging.

toxic megacolon, possible IBD or infectious complication. Toxic megacolon Case courtesy of Dr Sinéad Culleton , Radiopaedia.org, rID: 40519

Inflammatory Bowel Disease

Children account for one-quarter of new diagnosis of IBD. AXR can reveal classic thumbprinting and may be used to evaluate for toxic megacolon

Non-accidental Trauma

AXR may reveal evidence of abuse. This is why it is important to make sure you evaluate everything in the image and not just what is in the abdomen.

Post by Trevor Skrobut, MD

Editing by Ryan LaFollette, MD
